Category Control Juggler 2

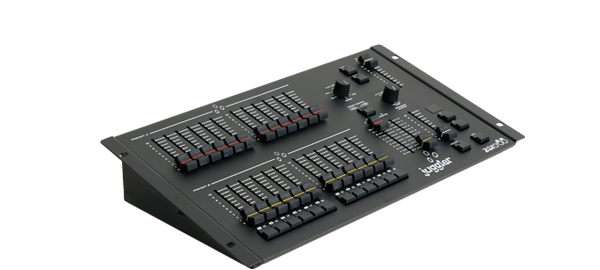

Juggler is a manual lighting control desk specifically designed for the smaller stage; a perfect solution for small scale lighting systems. Channel faders are set in a conventional two preset layout for easy crossfading. A fade time control allows smooth fades to be achieved over periods as long as 5 minutes. All crossfades are true dipless. This ability to hold constant lighting levels and varying fade times allows sophisticated lighting plots to be replayed simply and accurately.

Juggler controls up to 24 channels using preset faders avoiding the cost and complexity of more sophisticated lighting desks. Applications include schools, houses of worship, rental and conference events.

For larger shows, the wide mode feature allows 24-channel operation, with an internal scene store for two-preset operation. 12 sequences of 99 steps can be stepped manually to provide a simple cue list with go button functionality. Sequences may also be chased using the adjustable speed control.

Features

  • Two Preset Operation
  • 12/24 Channels
  • Flash Buttons
  • 12 Sequences of 99 Steps
  • Sequence Master
  • 19” Rack Mounting
  • Speed Control
  • True Dipless Crossfade
  • Grand Master
  • Wide Mode
  • Dimensions: 88 (H) x 483 (W) x 279mm (D)
  • Weight: 4.5Kg / 10lb
  • CE compliant to all relevant standards
  • Designed and manufactured to ISO9001:2015 standards

Accessories

Part Code Name
00-766-00 Juggler Flightcase Request quote

Variants

Part Code Name
00-129-11 Juggler, UK Request quote
00-129-21 Juggler, Schuko/French Request quote

Spare Parts

Part Code Name
1215299 Juggler Master PCB - PCB Ref: 7883
1215399 Juggler Preset PCB - PCB Ref: 7786
1176099 Juggler Processor PCB - PCB Ref: 7865
5446000 Soft Touch Fader Cap (Wide) - Black/Yellow
5445000 Soft Touch Fader Cap (Wide) - Black/Red
5442000 Soft Touch Fader Cap (Wide) - Black/White
5367000 21mm Push on Knob
5396000 21mm Cap Black White Line
1722-000006-00 60mm Fader - short tang (MFFs)
4407500 Juggler/Jester 10k Pot Lin
5355100 Black Button No LED
6050-000011-00 Black Button Red LED
5356400 Black Button 2 Red LED
9074500 Rack Mnt bracket, 2 Required per desk
5537500 42w 4 pin XLR PSU
