Demux 24

Demux 24

Legacy product

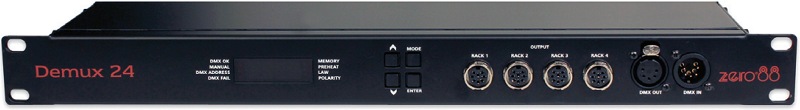

The Demux 24 is a 24 channel, rack mounted DMX to Analogue converter. Manufactured to the highest professional standards, the Demux 24 offers users the ability to use legacy analogue equipment with more modern DMX512 controllers. It is possible to select individual analogue output sockets as either negative or positive control voltage (+/- 10V), for maximum flexibility.

The Demux 24 also allows for the storage of 12 memories that can be manually played back using the integral user interface on the front of the unit. The internal switch mode power supply provides worldwide voltage support.

Demux 24 can be found in venues where analogue dimming equipment already exists, to provide an upgrade route for control desks without the need to replace the entire control system.

Spare Parts

Part Code Name
1213699 Demux 24 PCB Kit
4311000 Demux 24 Internal PSU (15V)
