Configuration & Settings
DMX Address
There are 2 ways that Betapack 4 can be patched – a single DMX start address can be set for the block of 6 channels (block patch), or each channel can be given a different DMX start address.
For block patch, the range of DMX start addresses is 001 – 507. For individual patch, the range of DMX start addresses is 001 – 512
Select ‘DMX ADR’ using the ‘Mode’ button, the display will show C.AAA, where C is the channel number and AAA is the current DMX address for that channel. Select the channel you require (1-6), or ‘A’ for all channels (block patch), using the ‘Up & Down’ Arrows and press ‘Enter’. Now set the address you require using the ‘Up & Down’ Arrows and press ‘Enter’ again to confirm and move back to the channel selection.

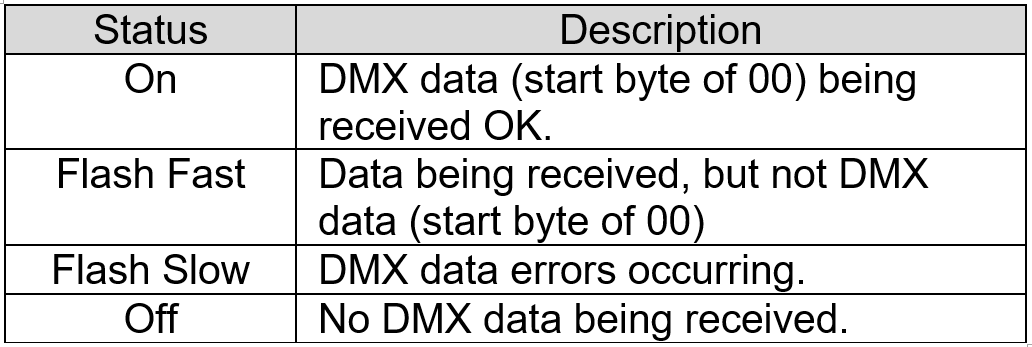

DMX indication LED behaviour.
