Chilli Pro
Installation
The unit should be installed in a dry ventilated location, where ambient temperature and humidity are within the operating range of the unit.
The units have ventilation slots / heatsink on all sides to allow convection cooling and under no circumstances should these be blocked.
Recommended minimum clearance around the units is 100mm each side of the unit and 50mm above and below the unit if trunking with a depth greater than 50mm is used.
The dimmer is provided with four 6mm diameter fixing holes for wall mounting. The mounting holes can be accessed by undoing the screws on the front cover and removing it.

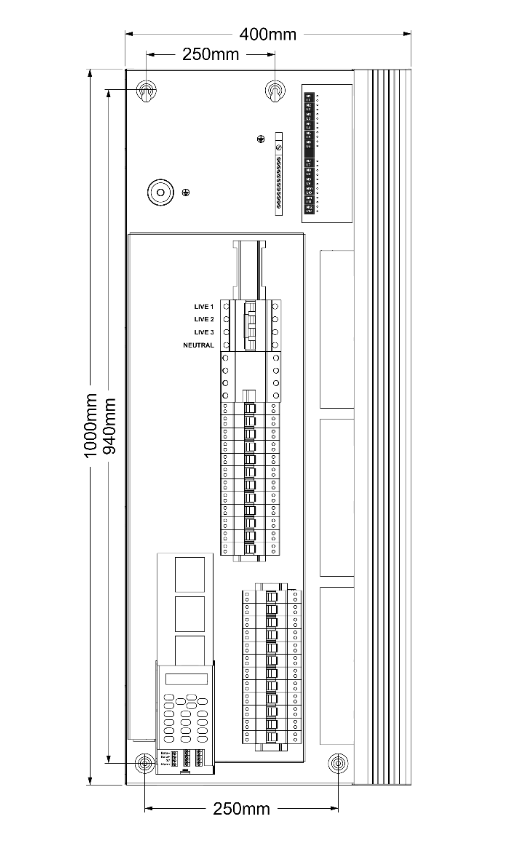

Fixing whole positions on Chilli Pro 12. Click the image to enlarge.

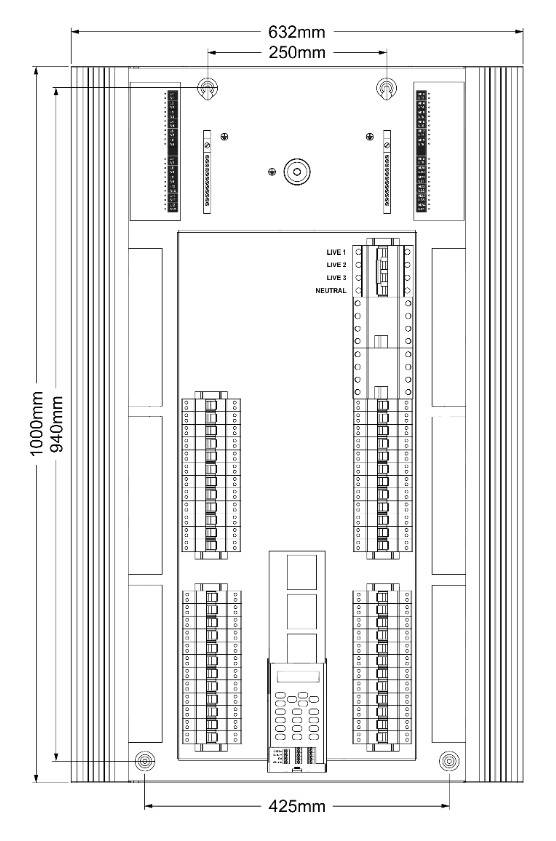

Fixing whole positions on Chilli Pro 24. Click the image to enlarge.
