Installation
Connecting DMX

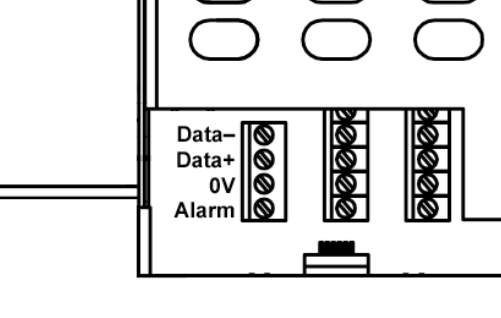

DMX input is connected through a 4-way screw terminal block located on the control PCB.
To loop through to another dimmer, simply connect both sets of wires into the same terminal block.
The terminals to be used are labelled RS485-, RS485+ and 0V.

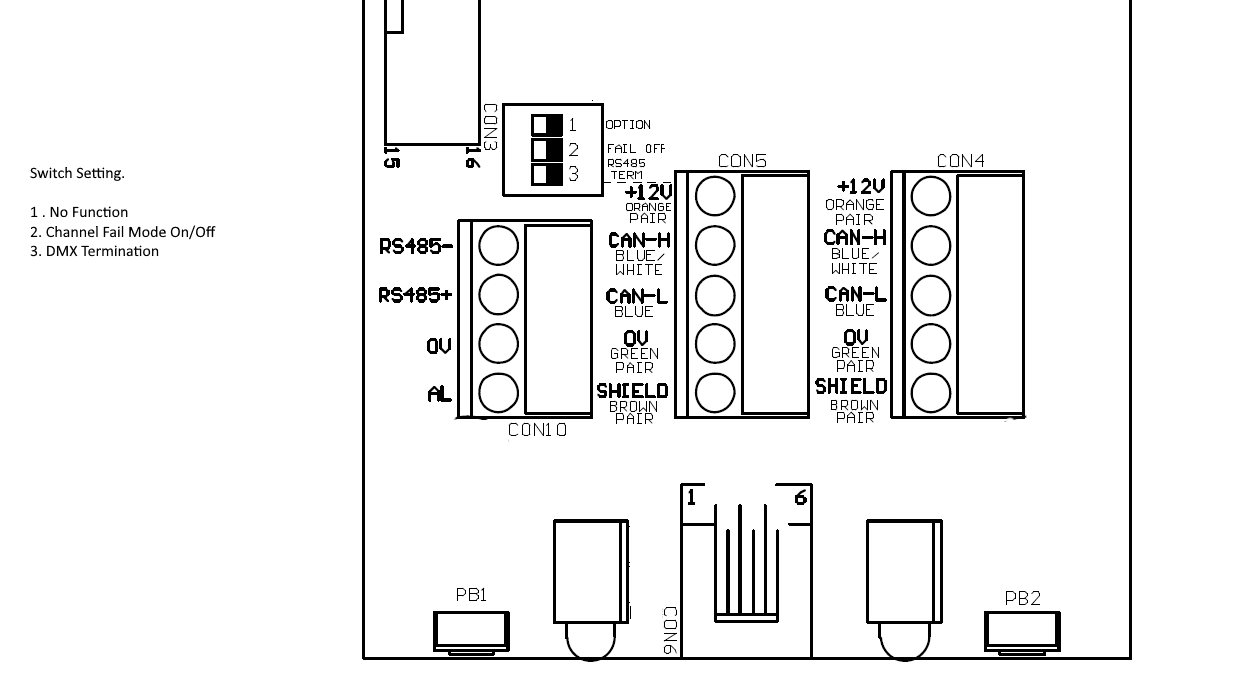

Just above the RS485 terminal block is a 3-way DIP switch, which can be used for RS485 termination.
- Switch 1 - Undefined
- Switch 2
- Switch to Left - Channel Fail Mode ON
- Switch to Right - Channel Fail Mode OFF
- Switch 3
- Switch to Left - DMX Terminator OUT
- Switch to Right - DMX Terminator IN
If a Chilli Pro is the last device on the DMX line, the termination switch should be set to "Terminator IN".
If a Chilli Pro is NOT the last device on the DMX line, the termination switch must be set to "Terminator OUT".
