Relay Card Fitting Instructions

PDF

Introduction

Chilli dimmers can have blocks of 4 dimmer channels replaced with relays. Chilli Pro MK3 support six cards (2 primary and up to 4 secondary). The secondary cards must be placed directly above or below a primary card. Chilli MK1 & MK2 support three cards (1 primary, and up to 2 secondary).

These instructions are for the following upgrade kits:

  • 0095-000108-00 - Primary Relay Card & PSU Kit
  • 0095-000109-00 - Secondary Relay Card Kit

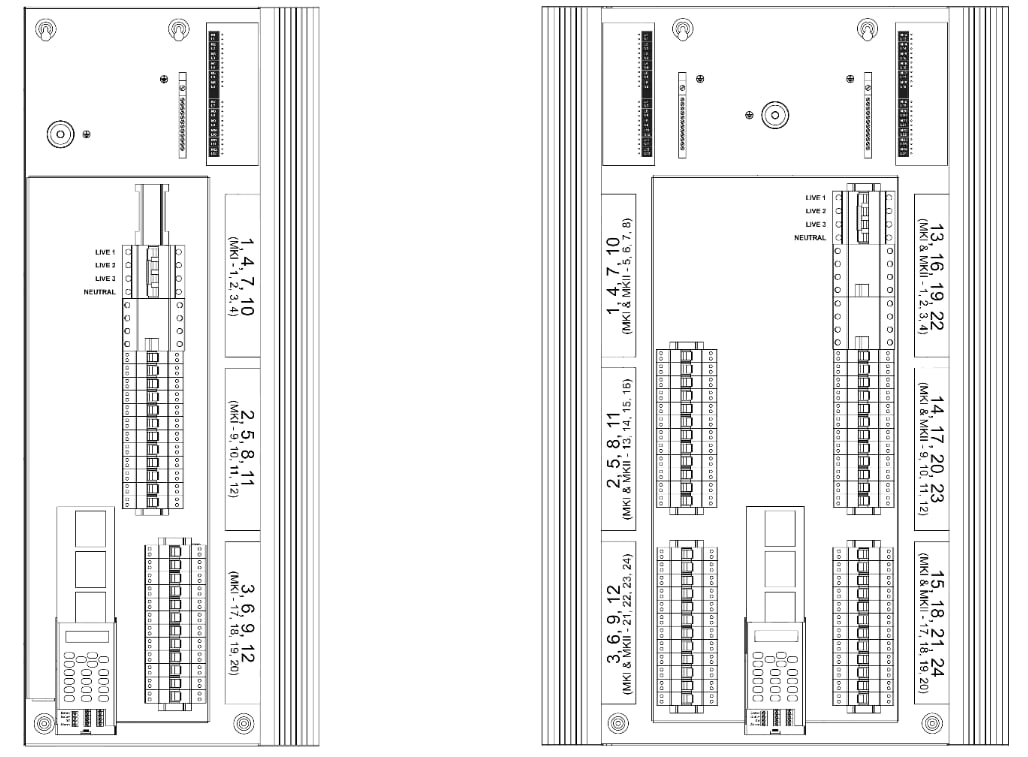

Chilli Channel Outputs

Chilli Channel Outputs

Instructions for Chilli Pro MK3


Configure Relay Channels

1 . Prior to fitting the relay cards, configure the channels you wish to convert to relays in the dimmer settings. Using the User Interface:

  1. Press Enter to get to the Menu
  2. Use the Up/Down Arrows to select Dimmer Laws
  3. Press Enter
  4. Use the Up/Down Arrows to get to Set Laws
  5. Press Enter
  6. Use the Up/Down Arrows to Select the Channel
  7. Press Enter to confirm
  8. Use the Up/Down Arrows to Select the law [Switch]
  9. Press Enter to confirm and repeat for all necessary channels.


2 . Remove the front cover(s) by removing the screws on the front of the unit.

Psu

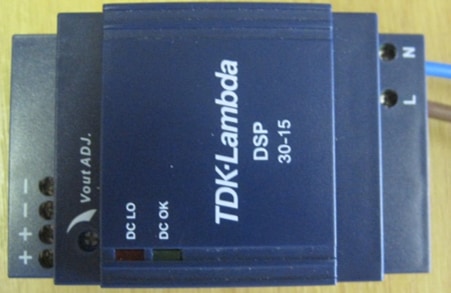

3 . Before assembling it to the unit, fit the following wires to the power supply of the Primary Card:

  1. Fit the brown Live wire to Live PSU terminal.
  2. Fit blue Neutral wire to Neutral PSU terminal.
  3. Fit terminated end of black wire on the long DC supply cable to a – terminal on the PSU
  4. Fit terminated end of red wire on the long DC supply cable to a + terminal on the PSU

4 . For non-bypass variants, the PSU can be fitted at the top of the DIN rail where the Bypass switches would be fitted.


5 . Screw the other end of the brown Live wire into the first circuit breaker. Screw the other end of the blue Neutral wire into the first circuit breaker.


Removal of Triac Boards

6 . Unscrew the Triac connectors on the boards to be replaced from the unit.


7 . Working through each individual channel to be replaced, cut the cable ties on the Live and Load wires. Disconnect each wire, untangle any wires that are twisted together (as you may need the length later) and mark up where the wire came from.


8 . Disconnect the ribbon cable(s) attached to the Triac Board and remove the PCB by unscrewing the 3 screws. Slide the board away from the Triacs then lift out.


9 . Lift the Triac Clip and slide out the Triac. With the Triac removed the clip is no longer tensioned and can be removed.


Fitting Relay Cards

10 . If a relay card is to be assembled at the middle position, then the thermal sensor is required. If a relay card is to be assembled to the top or bottom position, then the thermal sensor must be removed from the board by cutting its pins.


11 . Slide the Relay Board into position ensuring the side of the PCB is located in the retaining slot and insert the screws but do not fully tighten.


12 . Apply pressure to the (screw) side of the PCB to ensure that it is fully located in the slot and while maintaining the pressure, tighten the screws (if you don’t do this it can pop out of the slot when you are pushing the connectors on).


13 . If the central board has been replaced, then you must fit the Triac clip to the thermal sensor.


14 . Fit the coil wires first, running them around each side of the relay, then the Live and Load wires. Note: The coil connections are not electrically connected to the circuit, they are physically connected to the PCB, and are there to secure the wires only.


15 . Fit the DC supply cable to the furthest/lowest board closest to the PCB and use the link wires to connect the others.


Reassembly

16 . Refit all covers, reusing the screws that have been retained.

Instructions for Chilli MK1 & MK2


Configure Relay Channels

1 . Prior to fitting the relay cards, configure the channels you wish to convert to relays in the dimmer settings. Using the User Interface:

  1. Press Enter to get to the Menu
  2. Use the Up/Down Arrows to select Dimmer Laws
  3. Press Enter
  4. Use the Up/Down Arrows to get to Set Laws
  5. Press Enter
  6. Use the Up/Down Arrows to Select the Channel
  7. Press Enter to confirm
  8. Use the Up/Down Arrows to Select the law [Switch]
  9. Press Enter to confirm and repeat for all necessary channels.


2 . Remove the front cover(s) by removing the screws on the front of the unit.

Psu

3 . Before assembling it to the unit, fit the following wires to the power supply of the Primary Card:

  1. Fit the brown Live wire to Live PSU terminal.
  2. Fit blue Neutral wire to Neutral PSU terminal.
  3. Fit terminated end of black wire on the long DC supply cable to a – terminal on the PSU
  4. Fit terminated end of red wire on the long DC supply cable to a + terminal on the PSU
Bracket

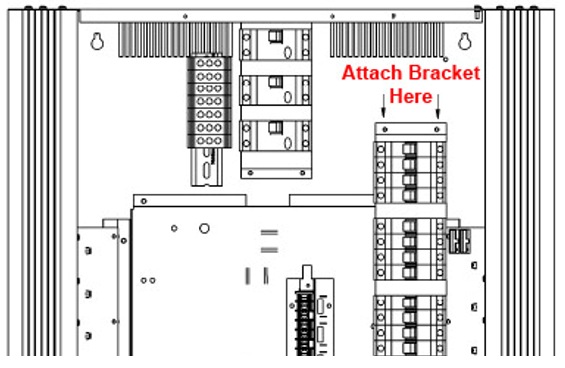

4 . Assemble the metal bracket to the unit in the position shown. Do this by removing the two screws holding the circuit breaker bracket to the enclosure, putting the metal bracket into position and refitting the screws.  Once the bracket is in place clip the power supply to the metal bracket such that the N and L terminals are facing to the right.

Relaypower

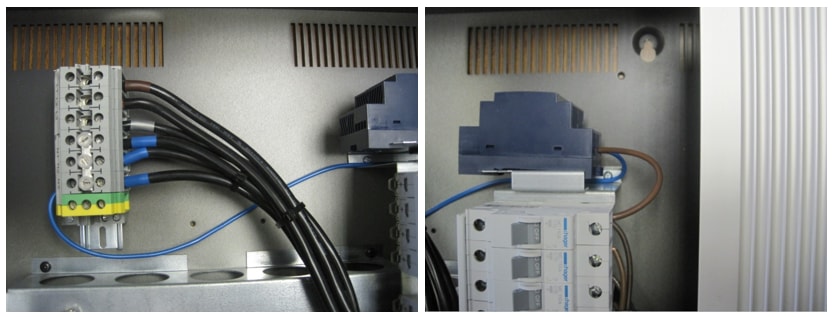

5 . Screw the other end of the brown Live wire into the first circuit breaker. Screw the other end of the blue Neutral wire into:

  1. One of the Neutral DIN terminal blocks if a non-RCD version Chilli
  2. The phase one RCD if the Chilli has RCDs fitted

Removal of Triac Boards

6 . Unscrew the Triac connectors on the boards to be replaced from the left-hand side of the unit.


7 . Working through each individual channel to be replaced, cut the cable ties on the Live and Load wires. Disconnect each wire, untangle any wires that are twisted together (as you may need the length later) and mark up where the wire came from.


8 . Disconnect the ribbon cable(s) attached to the Triac Board and remove the PCB by unscrewing the 3 screws. Slide the board away from the Triacs then lift out.


9 . Lift the Triac Clip and slide out the Triac. With the Triac removed the clip is no longer tensioned and can be removed.


Fitting Relay Cards

10 . Relay cards are to be assembled to the left-hand side of the enclosure only.

  • If a relay card is to be assembled at the middle position, then the thermal sensor is required.
  • If a relay card is to be assembled to the top or bottom position, then the thermal sensor must be removed from the board by cutting its pins.


11 . Slide the Relay Board into position ensuring the side of the PCB is located in the retaining slot and insert the screws but do not fully tighten.


12 . Apply pressure to the (screw) side of the PCB to ensure that it is fully located in the slot and while maintaining the pressure, tighten the screws (if you don’t do this it can pop out of the slot when you are pushing the connectors on).


13 . If the central board has been replaced, then you must fit the Triac clip to the thermal sensor.


14 . Fit the coil wires first, running them around each side of the relay, then the Live and Load wires. Note: The coil connections are not electrically connected to the circuit, they are physically connected to the PCB, and are there to secure the wires only.


15 . Fit the DC supply cable to the furthest/lowest board closest to the PCB and use the link wires to connect the others.


Reassembly

16 . Refit all covers, reusing the screws that have been retained.
