Chilli Pro
Technical Specification
Electrical
Supply Voltage:
- 230V +10% / -15%
Supply Frequency:
- 45 to 65Hz
Maximum Supply Current:
- 12 Channel 10A: 120A / 40A per phase 3 phase star
- 12 Channel 16A: 192A / 64A per phase 3 phase star
- 24 Channel 10A: 240A / 80A per phase 3 phase star
- 24 Channel 16A: 384A / 128A per phase 3 phase star
Channel Capacity
- Minimum: 0.1A
- Maximum: 10A / 16A
Rise Time
- 10A: 80uS
- 16A: 120uS
Channel Protection
10A / 16A, type C, neutral disconnect thermal magnetic circuit breaker per channel, breaking capacity 6000A.

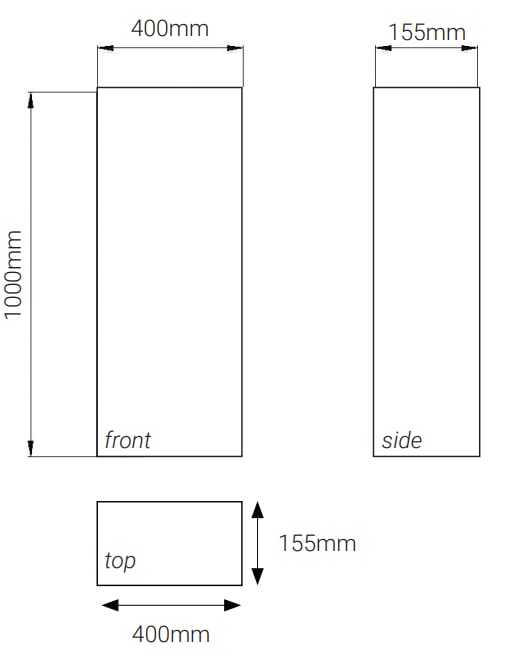

Chilli Pro 12
- Height: 1000mm
- Width: 400mm
- Depth: 155mm
- Weight: 24kg (max)
- IP Rating: IP2X (indoor use only)

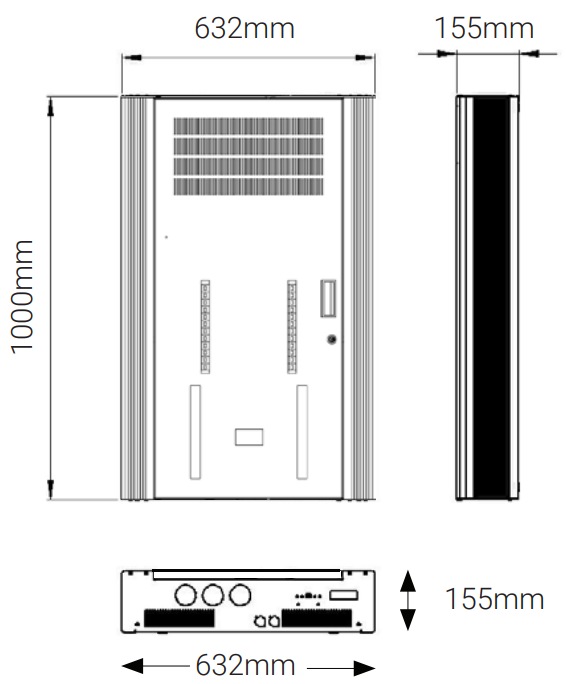

Chilli Pro 24
- Height: 1000mm
- Width: 632mm
- Depth: 155mm
- Weight: 50kg (max)
- IP Rating: IP2X (indoor use only)
Always observe the operating environment information. If this environment is exceeded, it is likely that damage will occur to Chilli Pro.
