Installation
Channel Outputs

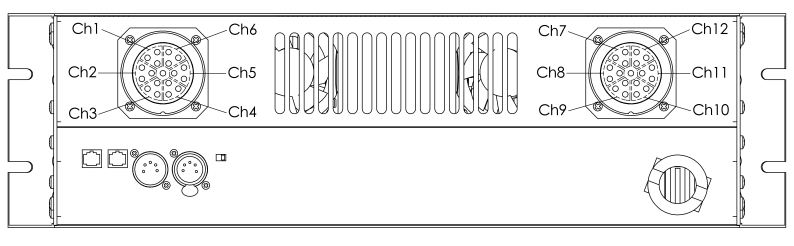

The left hand socket is wired for channels 1 - 6; the right hand socket for channels 7 - 12.

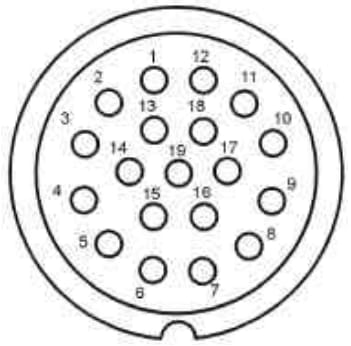

Socapex connector pin numbers.

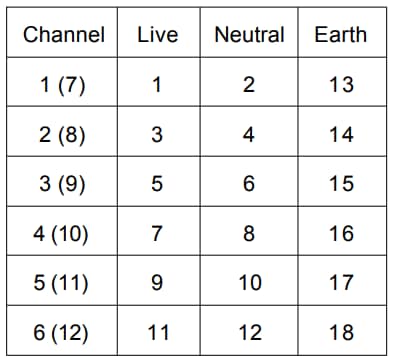

This table shows the pin connections of the Socapex connector. Note - Pin 19 is not connected.

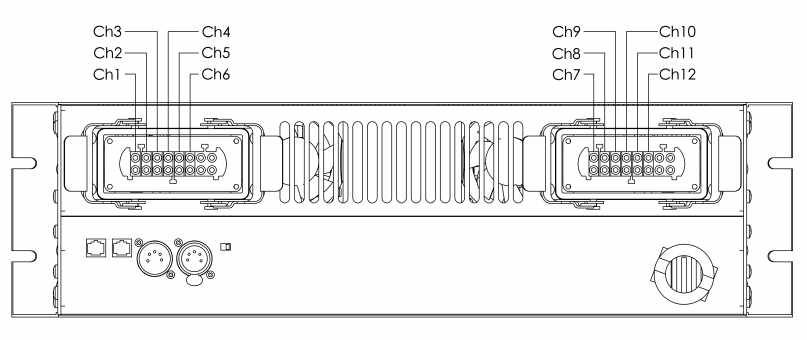

The left hand socket is wired for channels 1 - 6; the right hand socket for channels 7 - 12.

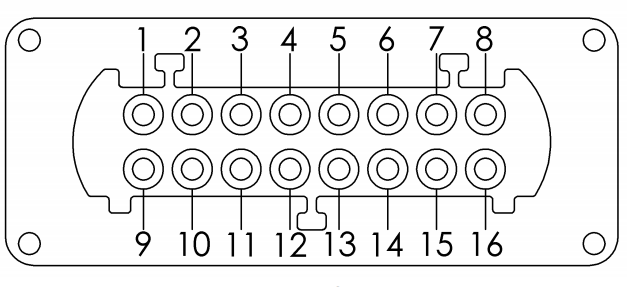

Harting connector pin numbers.

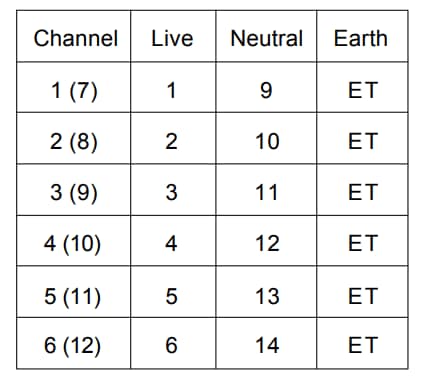

This table shows the pin connections of the Harting connector. ET = Earth Terminal.
