Spice

Technical Specification

PDF

Electrical


Supply Voltage:

  • 190V - 255V


Supply Frequency:

  • 40 to 70 Hz auto-sensing and auto-tracking


Total Dimmer Capacity:

  • 120 A (40A per phase, limited to 32A per phase by mains connector)


Channel Capacity

  • Minimum: 0.1A
  • Maximum: 10A


Rise Time

  • 80uS


Channel Protection

 10A neutral disconnect thermal magnetic circuit breaker per channel, breaking capacity 6000A.

DMX

  • USITT DMX512/1990
  • External switchable termination

Mechanical

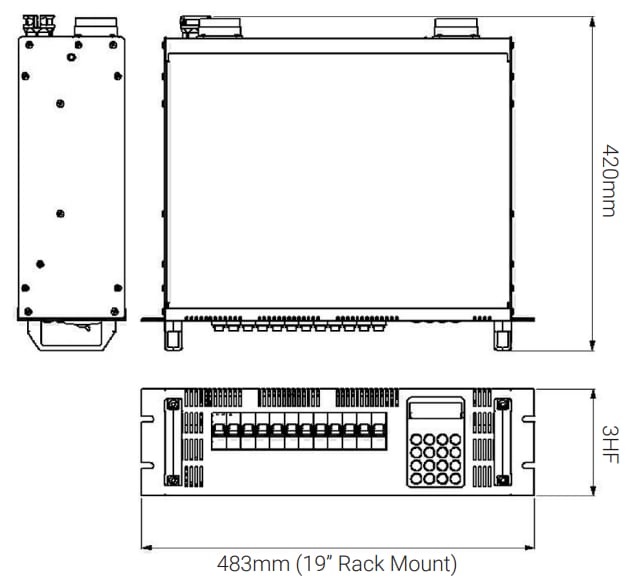

Spicedims
  • Height: 132mm - 3 Rack Units
  • Width: 483mm - 19” Rack Mount
  • Depth: 420mm
  • Weight: 14.5kg
  • IP Rating: IP2X (indoor use only)

Environmental

  • Operating Temperature Range: +2°C to +40°C
  • Operating Relative Humidity: 5% to 95% Non-condensing

EMC


Low Voltage:

  • EN60439-1 1994
  • EN60950


Emissions:

  • EN55022
  • EN55015:2000
  • EN61000-3-2


Immunity:

  • EN61000-4-3
  • EN61000-4-4
  • EN61000-4-5
  • EN61000-4-6
  • EN61000-4-11AC
