iCANnet Control
RigSwitch cabinets feature an SCMR1232 relay controller, which can be controlled over iCANnet. RigSwitch 12 include one of these, and RigSwitch 24 include two. Controlling RigSwitch using iCANnet, allows for RigSwitch to be integrated into the wider iLight architectural control network, allowing for channels to be controlled with close contact switches, or dedicated button panels.

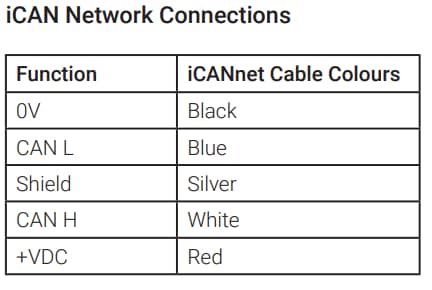

To control over iCANnet, connect to the iCANnet network using the SCMR1232 iCANnet Network terminals. If this SCMR1232 is the last device on the iCANnet, terminate the iCANnet with the termination switch. If the SCMR1232 is not the end of the iCANnet, whether that be the iCANnet continuing to another device, or to the other SCMR1232 in RigSwitch 24, continue the iCANnet feed out of these terminals, and do not terminate.
Maximum segment distance: 500m (1640 ft)
Devices per segment: 100 (without bridge or repeater)
Consult iLight for information on alternative cable types. Connecting a mains potential cable to the iCAN Network terminals will damage the unit and other devices connected, and invalidate warranty.

For programming and configuration of SCMR1232 on iCANnet, Device Editor V2.11.1 is required. (Packaged with iCANsoft V3.1.7 or later).
