Installation
Connecting channel outputs

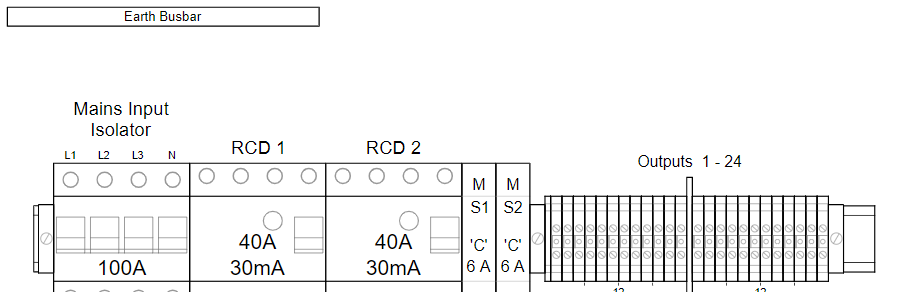

Terminals
Double stacked load output terminals for live and neutral per channel are situated top right of the cabinet, and will accept a maximum 6mm2 cable. Earths will share the main bus bar top left of the cabinet.
Each block of 12 channels is rated at a maximum of 192A load.

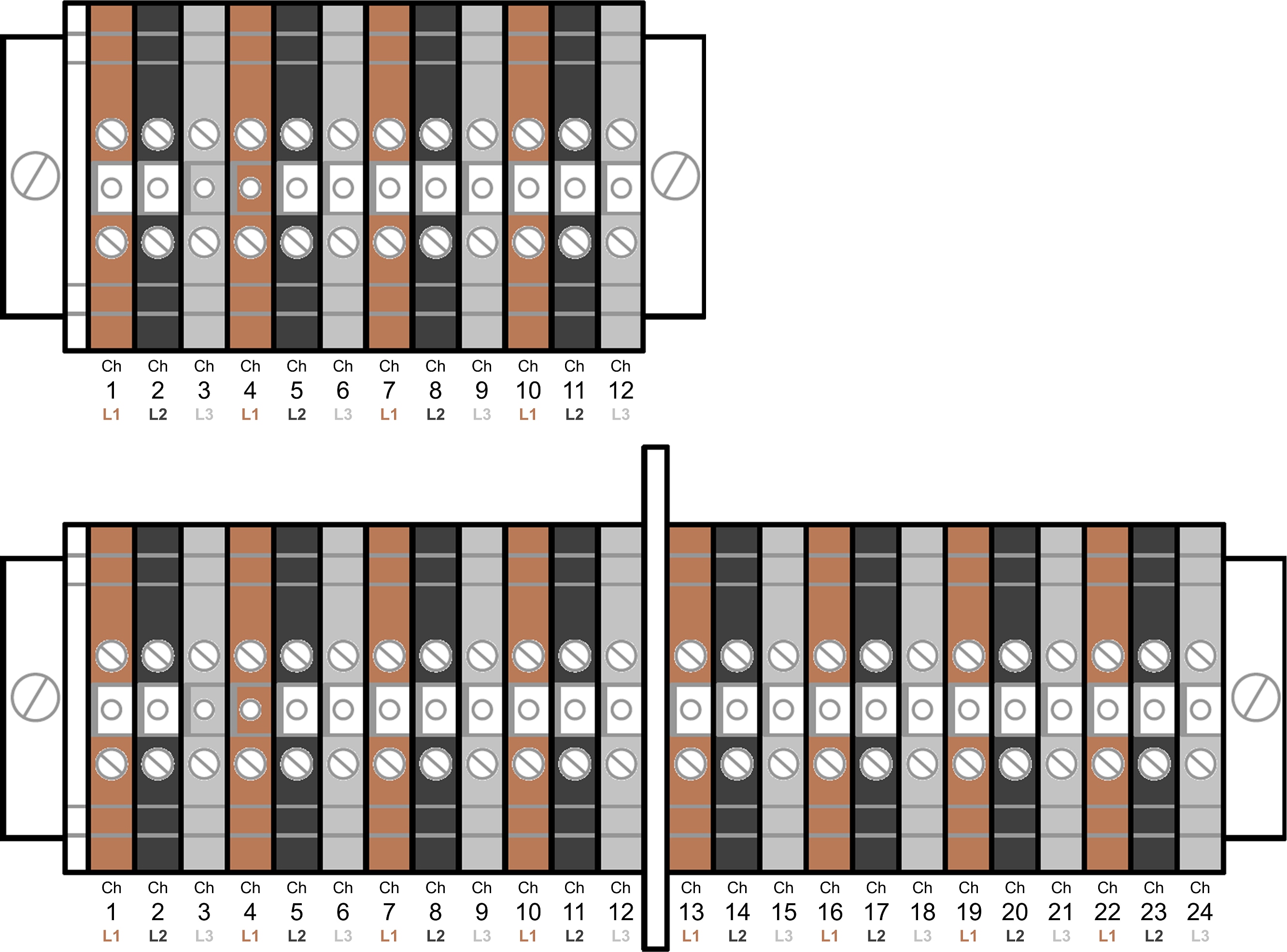

Channel Phases
Phases are interlaced as follows:
- Phase 1 (brown*): Channels 1, 4, 7, 10, 13, 16, 19, 22
- Phase 2 (black*): Channels 2, 5, 8, 11, 14, 17, 20, 23
- Phase 3 (grey*): Channels 3, 6, 9, 12, 15, 18, 21, 24
*IEC Standard wiring colour codes
Top Cable Entries
2x Flange:
- 14x ø11mm
- 8x ø15mm
- 2x ø28mm
Relief stamp:
- 2x M32/M40
